Air Separator Systems

Bitmap (2)

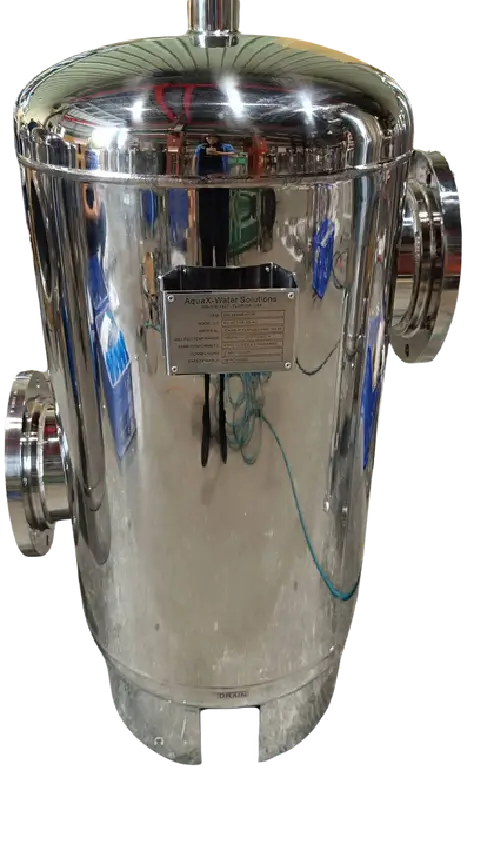

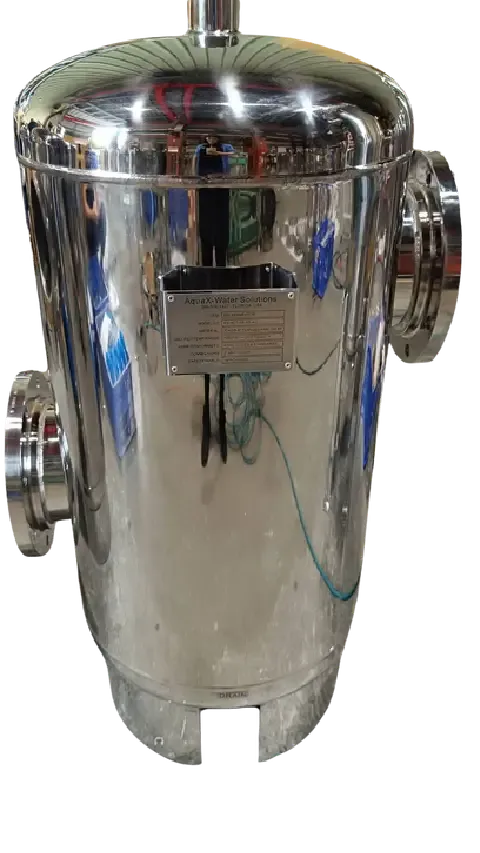

AquaX - Air Separators

High-Efficiency Hydronic Air Separators for HVAC & Chilled Water Systems

Product Description

AquaX Air Separators are high-efficiency hydronic air separators designed to remove entrained air and microbubbles from closed-loop HVAC, chilled water, and process systems. By eliminating air within the system, AquaX air eliminators improve heat transfer efficiency, reduce pump cavitation, prevent corrosion, and stabilize overall system performance.

Engineered for demanding environments such as data centers, central plants, commercial buildings, and industrial facilities, AquaX stainless steel and carbon steel air separators deliver reliable, low-maintenance air removal with extended service life.

Key Features

  • Turbo Vortex microbubble air separation technology

  • Low pressure drop design

  • No moving or removable internal parts

  • Maintenance-free operation

  • Available in 304 stainless steel (standard) or carbon steel (optional)

  • ASME certified or ASME U-Stamp available

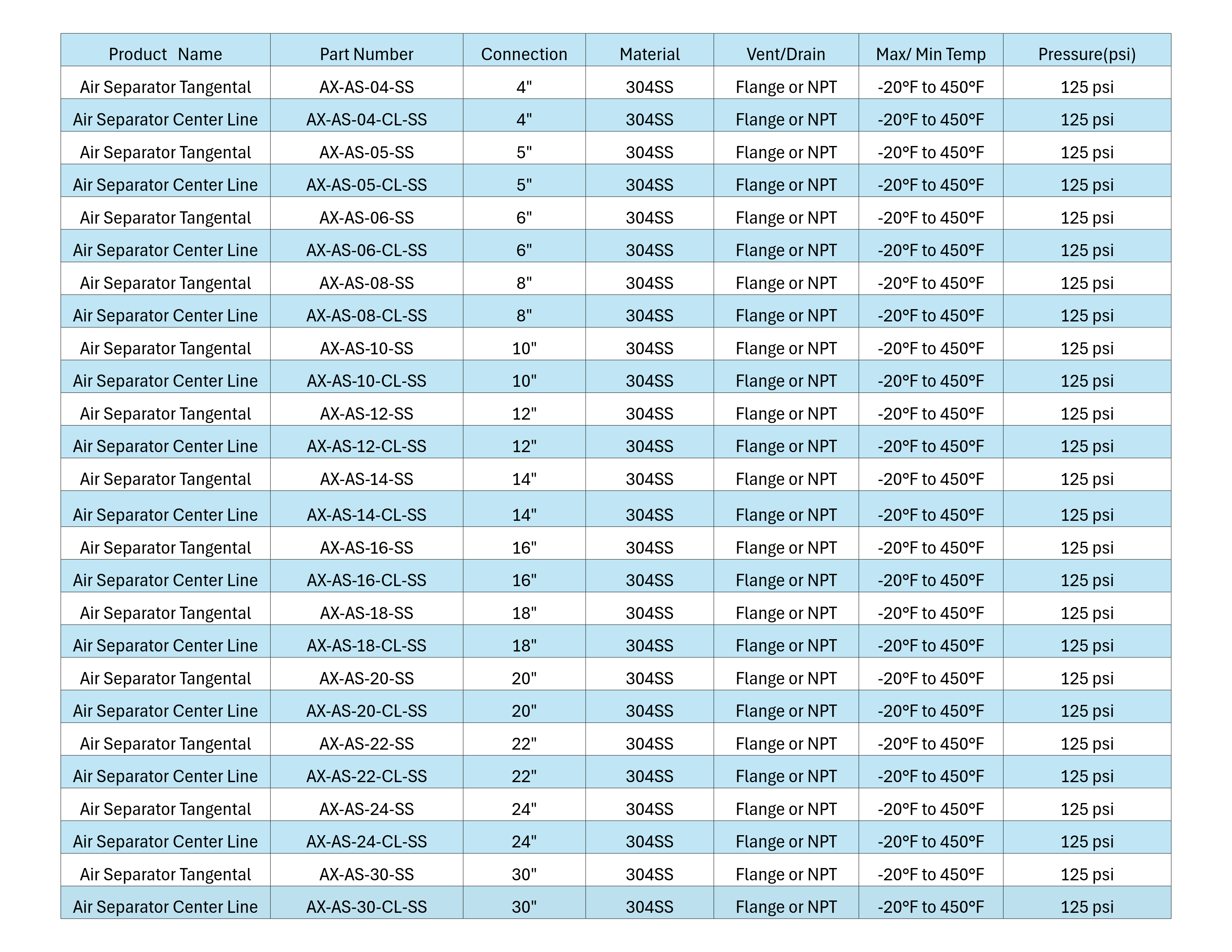

Technical Specifications

  • Connection Sizes: 2”–30” (custom sizes available)

  • Flow Range: 50–30,000 GPM

  • Pressure Rating: Up to 125 PSI (higher ratings available upon request)

  • Temperature Range: -20°F to 450°F

  • Finish (Stainless Steel Models):

    • Acid-pickled interior

    • Optional polished exterior

Optional Accessories

  • Automatic air vent

  • Flush valve

  • Vent valve

  • Tee flange

  • 90° elbow

Applications

  • Data center HVAC systems

  • Chilled water plants

  • Commercial hydronic heating systems

  • Industrial process cooling

  • Central utility plants

Warranty

2-Year Repair or Replace Warranty

Comparable Brands

Comparable to products from:

  • Wessels

  • Taco

  • Watts

  • Amtrol

  • Bell & Gossett
